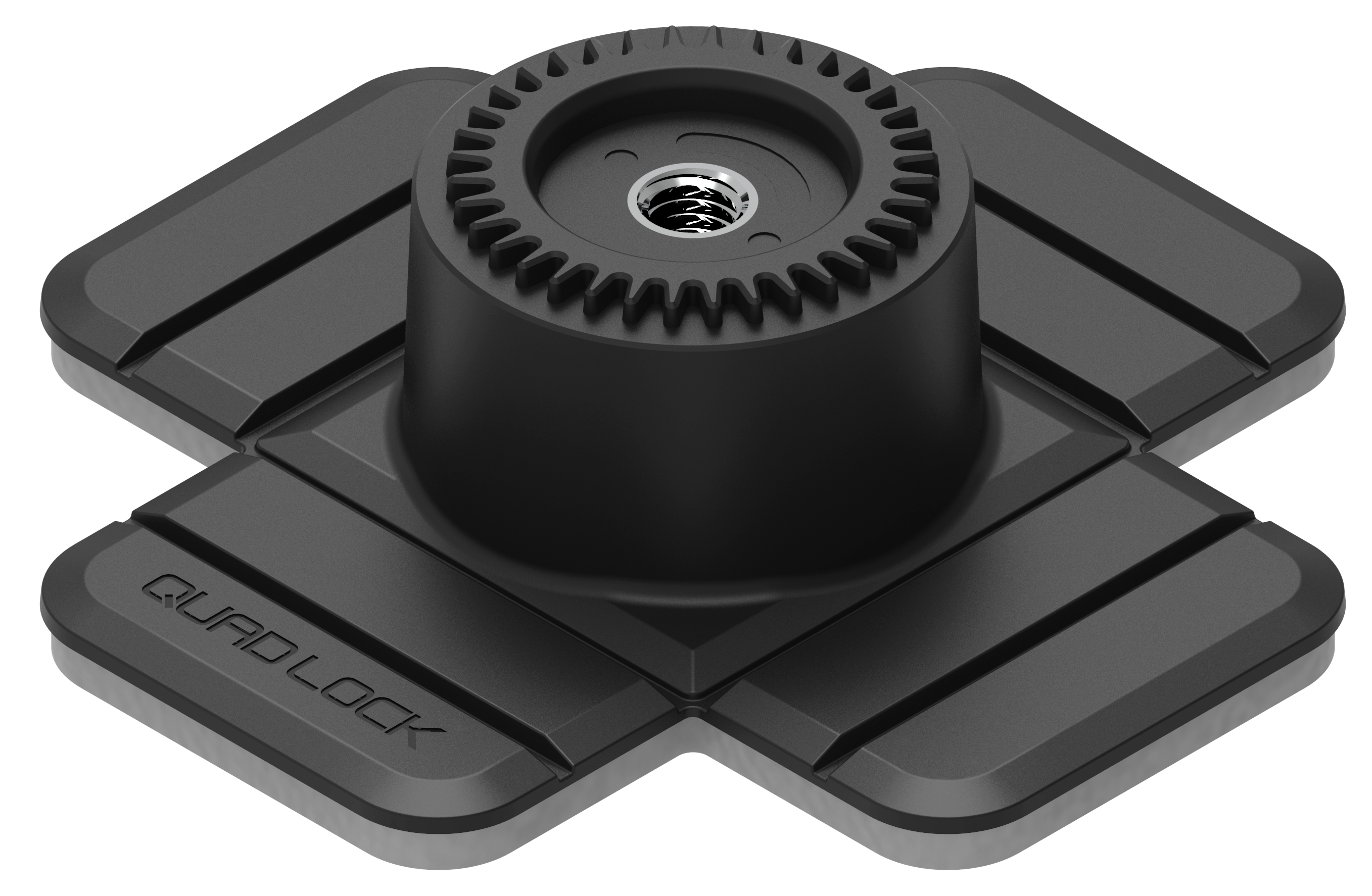

QuadLock 360° Flexible Adhesive Base

The Flexible Adhesive Base is suitable for mounting to flat or curved surfaces*

Using a super secure 3M™ Adhesive, the Flexible Adhesive Base has 4 tabs which can be bent to match the curved surface.

A 10mm Spacers and x2 Screws (1 x M5x30 and 1 x M5x45) are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM.

*Please Note: Not intended for severely curved surfaces (eg. 180 degrees)

1 x Flexible Adhesive Base
1 x 10mm Spacers
1 x M5x30 screw (for connecting Spacer to Lever Head or 360 Arms)
1 x M5x45 screw (for connecting Spacer to Weatherproof Wireless Charging Head)
1 x Isopropyl Alcohol Wipe

Made from tough, nylon construction, the Flexible Adhesive Base is 60mm x 60mm with a height of 18.3mm.

Each tab is 28mm wide and has 2 grooves, which are the bending points to allow grip to curved surfaces. These can be used in a concave or convex manner.

The adhesive used is the renowned, 3M™ Adhesive for extra strong grip.

Compatible with all Quad Lock 360 ARMs and HEADs.

Please Note: We recommend thoroughly cleaning the surface before applying the Flexible Adhesive Base with an alcohol-based cleaning substance.

The Flexible Adhesive Base can be attached to a number of different flat and curved surfaces, however, it is not intended for severely curved surfaces (eg. 180 degrees).

The 3M™ VHB Adhesive will adhere to smooth, non-textured, non-porous surfaces such as:

• Un-coated Glass (eg. windshield)
• Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. plastic car dash, console)
• Metals
• Fibreglass
• Sealed wood

Recommended applications:

• Interior of cars / 4x4
• Boats
• Caravans
• Any low vibration element

It is not recommended for the following substrates:

• Rubber, TPU, TPE
• Leather
• Silicone
• Soft touch coating or paint
• Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
• Unsealed wood

Although possible, we do not recommend using the Flexible Adhesive Base on the following vehicles.

• Motorcycles
• Scooters
• ATVs
• Anything that causes high vibrations or receives constant exposure from outdoor elements

Please ensure the substrate is thoroughly cleaned and dry before applying the Flexible Adhesive Base.

The 3M™ VHB ™ tape is a single use adhesive and is not reusable.

Ensure mount position does not obstruct vehicle safety features such as airbags.
